Electric Automation Controls

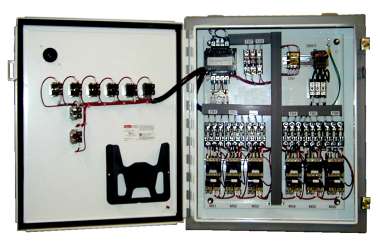

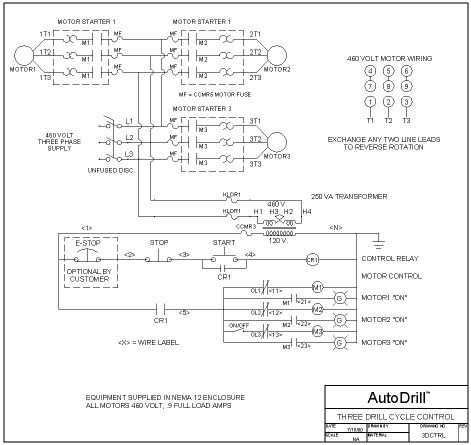

We offer Custom Engineered Electric Motor Controls to reduce project costs and speed their completion. We are responsible for component selection, circuit design, panel layout, and wiring schematics. Some of the outstanding features of our controls are:

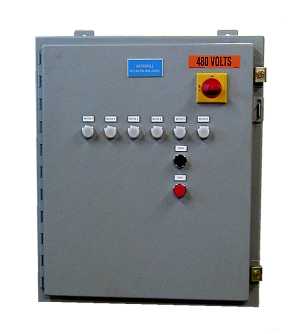

  • Painted steel NEMA 12 Industrial Enclosure with lockable thru-the-door safety disconnect

  • Professionally wired and labeled for minimum maintenance

  • Stop/Start/Run Light, Fuse Block, Magnetic Starter and Overload Device for each motor

  • Fuses, correctly sized, provided for all components

  • Panel mounting brackets included

  • Provisions at terminal strip for remote Emergency Stop

  • Documentation included

  • 115 VAC Control Transformer





Options

  • Emergency Stop Operator Station

  • Remote Stop/Start/Indicator Operator Station

  • Oversized Enclosure for future expansion

  • NEMA 4 Watertight Enclosure

  • Integrated Pneumatic Control

  • Variable Speed Motor Control

  • Motor Cycle Control

  • Sequencing Control

  • Oversized Control Transformer







No. of Drill Units

Enclosure Size (HxWxD)

Approx. Wt. (lbs.)

1

12" x 10" x 6"

22

2

16" x 12" x 6"

28

3

20" x 16" x 6"

37

4

20" x 16" x 6"

40

5

24" x 20" x 6"

55

6

24" x 20" x 6"

58

7

30" x 24" x 6"

80

8

30" x 24" x 6"

84

9

30" x 24" x 6"

87

10

30" x 24" x 6"

90

Panel Ratings: 1/2 HP 115V. 1 Phase, 1 HP 230V. 1 Phase, 2 HP 230V. 3 Phase, 5 HP 460V. 3 Phase







Our Electric Control Panel color literature is available for viewing or printing with Adobe Acrobat Reader.  The file size is approx. 225K which takes about 1 minute to download at 28.8K and 1/2 minute at 56K.  Adobe Acrobat Reader 4.0 is available for free download.  Click on the images below.
