2100 Series Drill Unit
The Series 2100 Drill Unit is based on the Series 2000 Drill Unit with the
addition of a Hydro Speed feed cylinder. This addition overcomes the
limitation of pneumatic feed control. Two speed feed rate is standard.
The pneumatic feed controls the less critical work approach and the
Hydro Speed controls the critical work penetration feed rate. Click on the image below to display an animation of the Hydro Speed principle.

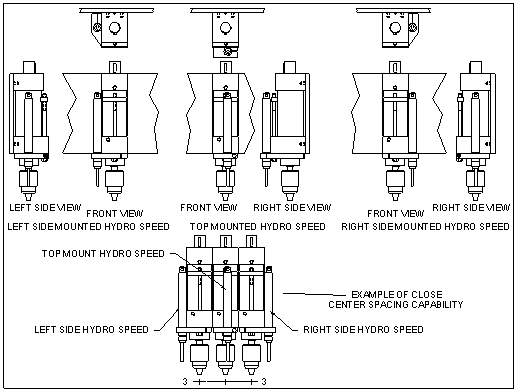

The Hydro Speed can be provided in any of three locations. This flexibility is appreciated when drilling closely spaced holes. It also simplifies maintenance since it can be repositioned or replaced without disturbing the Drill Unit body. The diagram below displays the optional locations.
The 2100 Series Drill Unit includes all the features of the 2000 Series Drill as well as the following:
-
Two Speed stroke control
-
Infinitely variable drill feed control
- Clean hole breakthru where necessary
- Improved counterbore and countersink finishes
- Extended capacity with the precision feed control

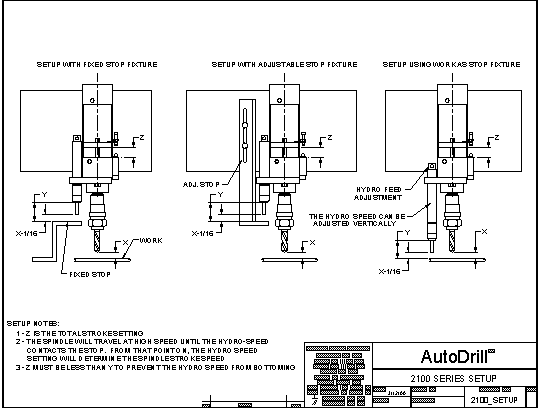

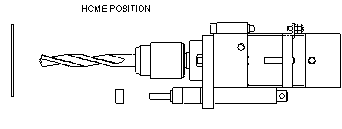

The diagram shows how the 2100 Series Drill Unit is setup for two speed operation:
